New octa-core 6nm Snapdragon 680
Android 13
4 x CS43198 DACs
Fully balanced 2-stage amplifications
Dual Type-C ports
Low jitter coaxial output
4.7-inch compact HD screen
3.5mm+4.4mm headphone/LO dual output

A “HEARTY” BENCHMARK NEW PARADIGM

The M21 redefines the entry-level class with its flagship lineage.

Its internal and external “hearts” are full of “heart” in providing you with enjoyment.

Its compact screen and class-defying performance are a massive step forward, aiming to be a benchmark for an entirely new generation.

FLAGSHIP SOC

A NEW ENTRY-LEVEL BENCHMARK

The Qualcomm Snapdragon 680 has superior performance with less power consumption than the SoCs used by players in the same class. It provides a smooth experience with Android 13.

4XCS43198

FULL OF “HEARTY” POWER

The four DAC chips allow for an eight-channel fully differential output design, fully unleashing the power of headphones with class-defying dynamic performance and high anti-interference capabilities. The headphone amplifier section adopts a two-stage circuit design: the first stage is responsible for voltage amplification, while the second stage handles current expansion – all ensuring purer sound with rich detail.

PATENTED DESKTOP MODE

BATTERY PROTECTION EXPERT

Desktop mode makes an appearance on an entry-level FiiO player for the first time. When desktop mode is enabled, the M21 is completely powered by an external power supply. The built-in battery is neither charged or discharged, allowing you to use the player safely on the desktop without degrading its battery.

Patent number: ZL202321946664.8

PORTABLE/DESKTOP DUAL POWER SUPPLY MODES

A JUMP IN PERFORMANCE

In portable mode, it operates with standard voltage power supply. When using the external power “Super high gain” mode, the player automatically switches to using a high-voltage power supply with 21Vpp (300Ω) peak drive voltage and 950mW (32Ω) massive output power. This delivers desktop-level power output, making the player a better fit with a wider range of earbuds or headphones for a truly extraordinary auditory feast.

GO BACK TO THE WALKMAN ERA

WITH JUST ONE TOUCH

The custom cassette-style protective case* paired with an exclusive retro UI and tailored vintage sound effects all take you on a nostalgic journey back to the Walkman era…

Remove the protective case to seamlessly switch back to the original system, giving you the flexibility to use it how you want to.

*The cassette-style protective case must be purchased separately.

*When using the cassette-style protective case, touchscreen operation is disabled; only button operation is supported.

TRUE QUALITY

INSIDE AND OUT

The fully aluminium alloy body with an AG frosted glass back offers a delicate texture and comfortable grip. The screen features an oleophobic coating that significantly reduces fingerprints and smudges, making for smoother touch operation.

DIGITAL AND ANALOGUE PARTITION SHIELDING

PURE HEAVENLY SOUND

The digital and headphone amplifier section exists in separate partitions and each is equipped with independent shielding covers for isolation. This not only further reduces signal crosstalk but also enables efficient heat dissipation, delivering purer sound.

FLAGSHIP-GRADE POWER

There are separate power supply paths for the digital and analogue circuits, which effectively reduce crosstalk between the two. The result is more precise digital processing, purer analogue output, and enhanced driving power. The analogue circuit is further subdivided into multiple independent power supplies for components such as the DAC and headphone amplifier. This clean and robust power delivery enhances the dynamic range and leads to greater reproduction of details in the audio – for a more refined and natural sound.

HIGH-END HIFI PARTS

FOR BETTER SOUND

In the M21’s audio circuit are high-precision thin-film resistors and low-temperature-drift capacitors that ensure refined and stable sound quality – specifically the greater consistency between the left and right channels and across all frequency ranges. Additionally, fine circuits such as the DAC and headphone amplifier are equipped with over 10 low-impedance, high-capacity tantalum capacitors. These provide abundant energy reserves and a robust power supply for more powerful, dynamic sound.

GLOBAL AUDIO OPTIMISATION

5^TH-GEN FPGA + DUAL CUSTOM FEMTOSECOND CRYSTAL OSCILLATORS

FiiO developed a custom crystal oscillator specifically for the M21, which has been carefully selected to meet femtosecond-level standards, in order to ensure consistency and stability in its output. With a high-precision, low-jitter unified clock source, it accurately matches PCM and DSDD audio at various sampling rates, ensuring precise reproduction of digital audio signals.

VERSATILE CONNECTIVITY

HIGH-PERFORMANCE OUTPUT

Analogue output

3.5mm+4.4mm headphone outputs: Connect to headphones

3.5mm+4.4mm headphone outputs: The independent line amplification circuits allow you to connect to active speaks and external amplifiers

Digital output

SPDIF output: The low-jitter coaxial output is comparable to that of pro equipment, with the jitter reduced by 70% and achieving high performance when connected to an external high-end audio DAC

USB Audio output: Connect to an external audio DAC and instantly turn it into a streaming jukebox.

15H LONG BATTERY LIFE

EXPLORING THE WORLD OF MUSIC

The M21’s 4000mAh high-voltage battery provides up to 15 hours of ultra-long battery life, effortlessly providing the energy for extended listening sessions when commuting or travelling, allowing you to fully immerse yourself in the world of music. It also supports 20W PD fast charging, enabling quick recharges even during short breaks.

HARDWARE AND SOFTWARE

SYNERGY ALL COVERED

MMQA 8x full unfolding
Two-way LDAC Bluetooth
Five working modes
Customisable multi-function key
RGB pulsing lights

DAP

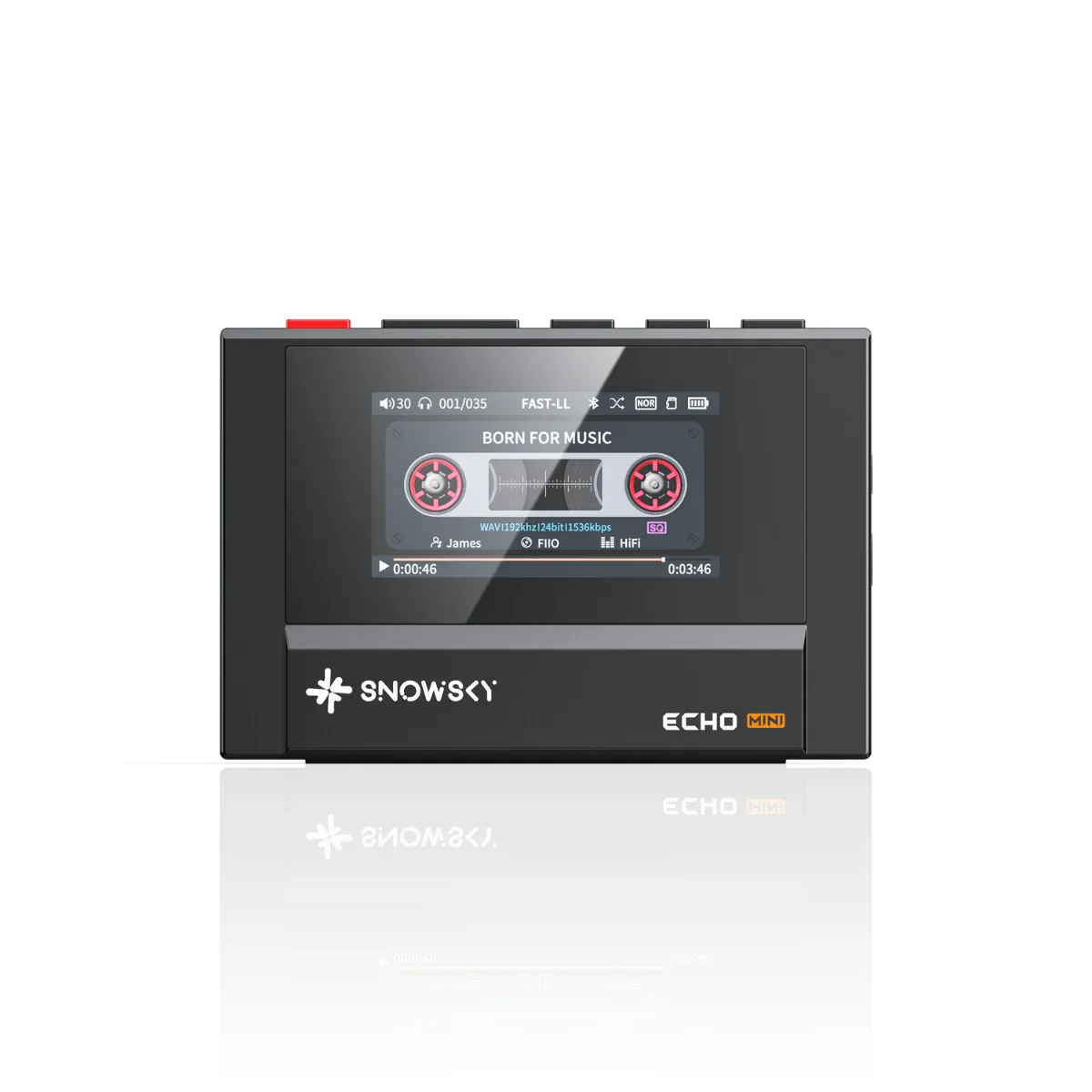

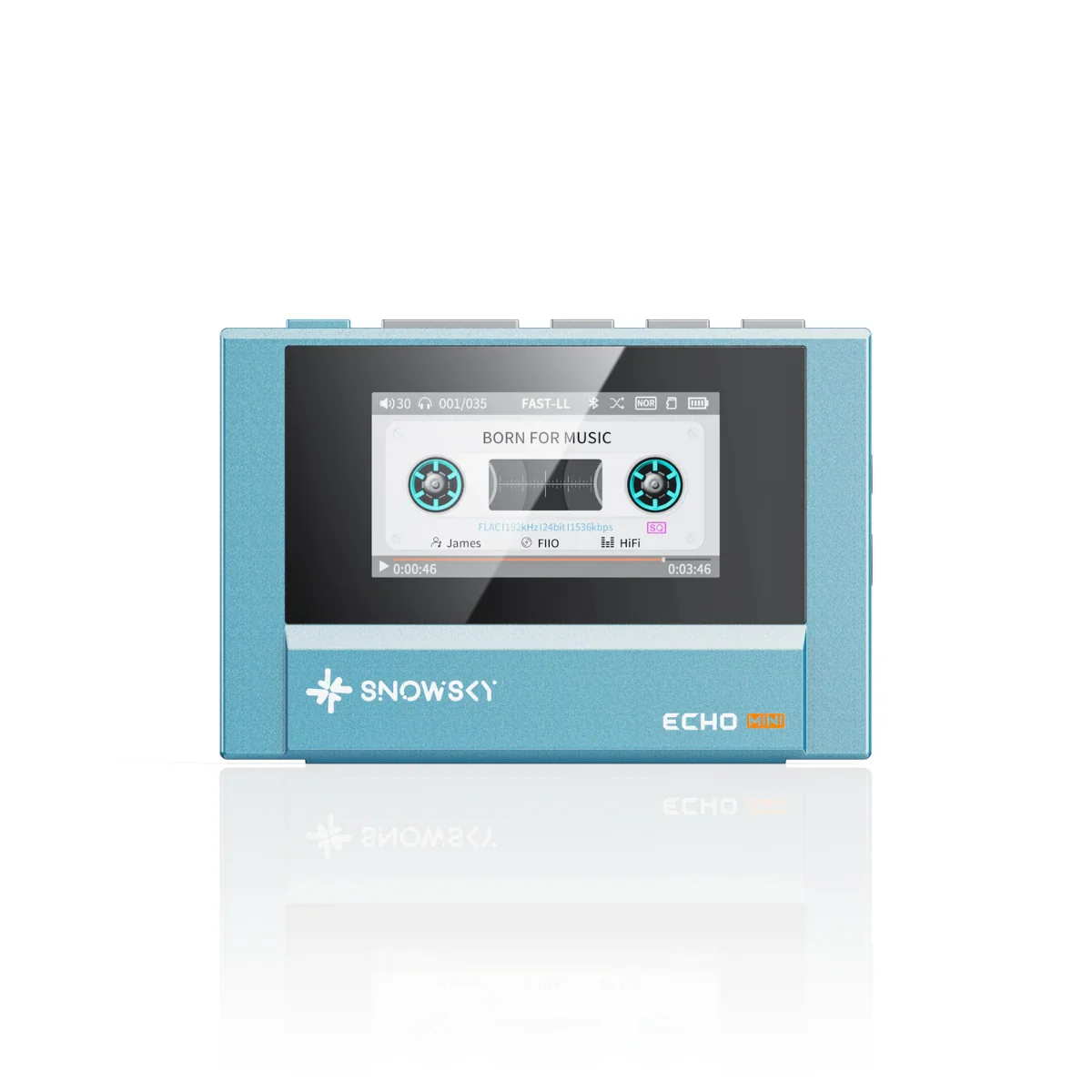

Fiio Snowsky Echo Mini Portable High Res Audio Player

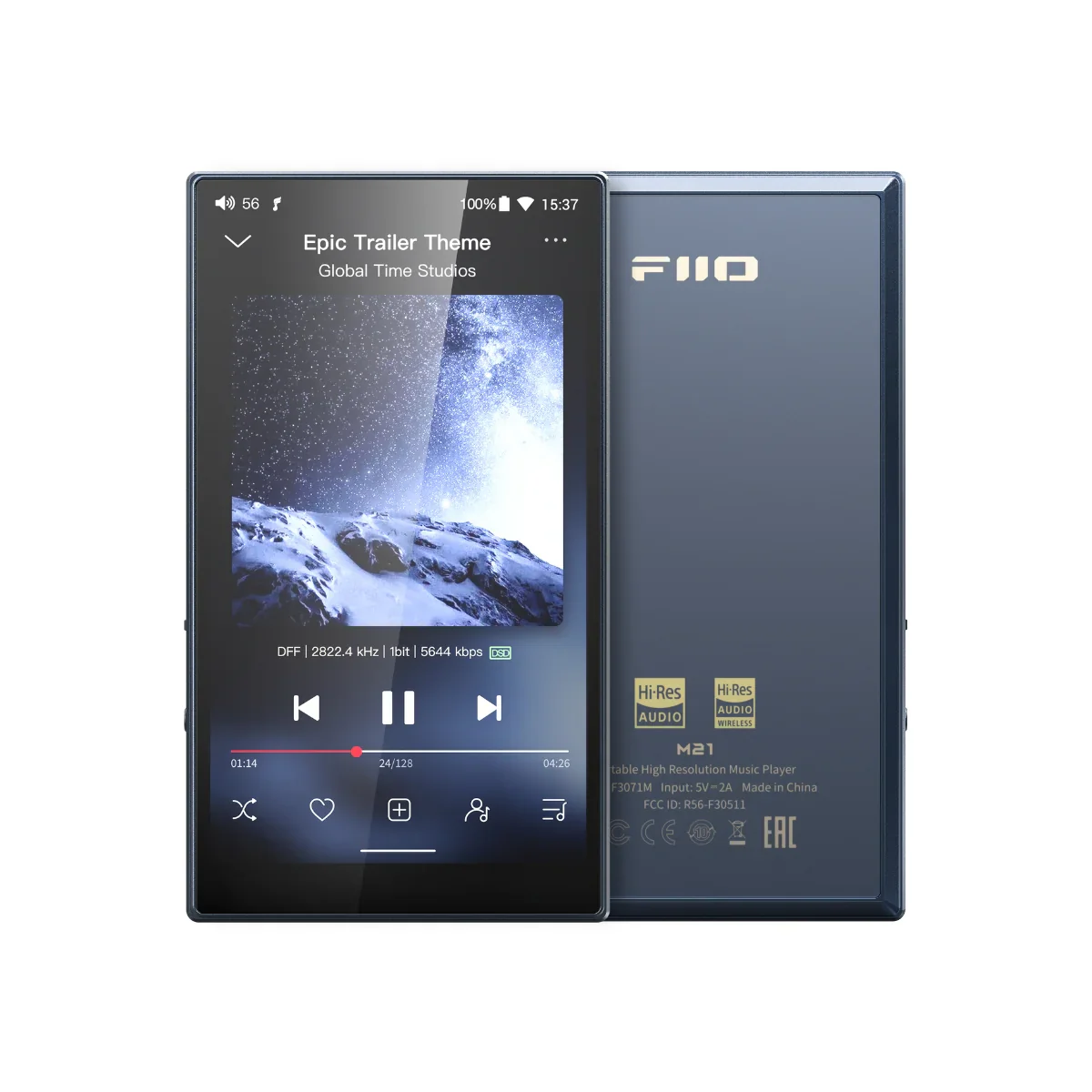

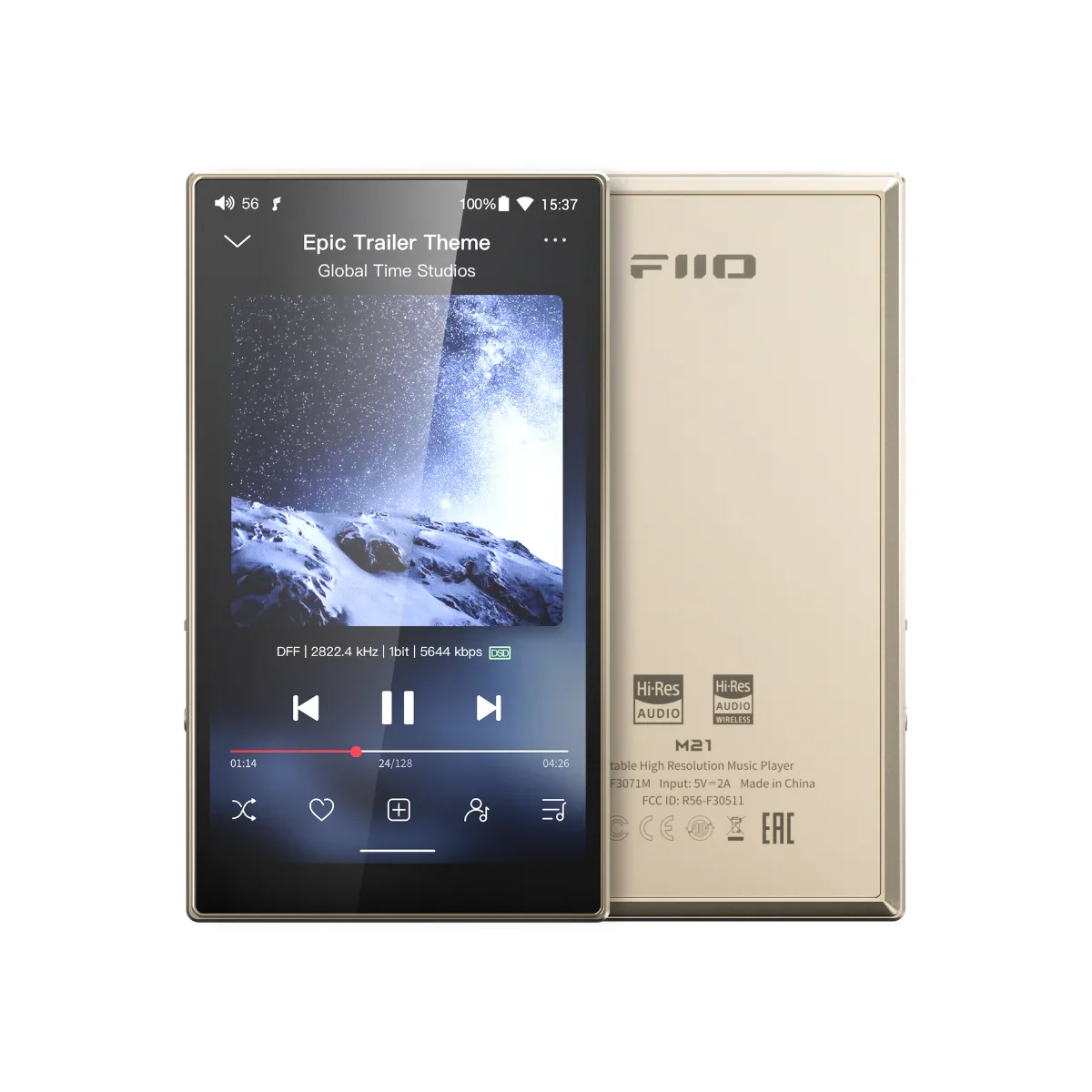

Fiio M21 Portable High Res Audio Player

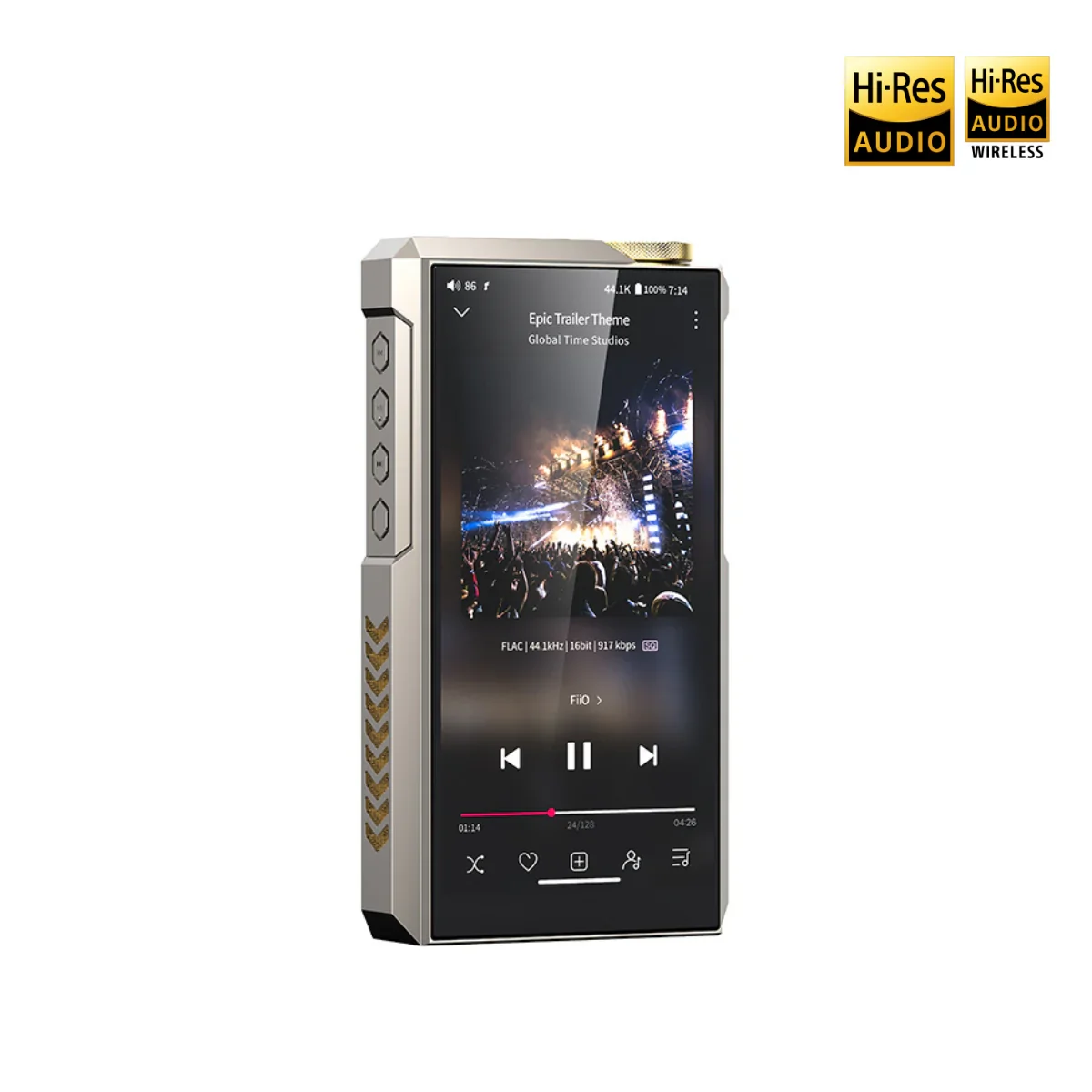

Fiio M27 Portable Hi Res Audio Player Titanium Gold

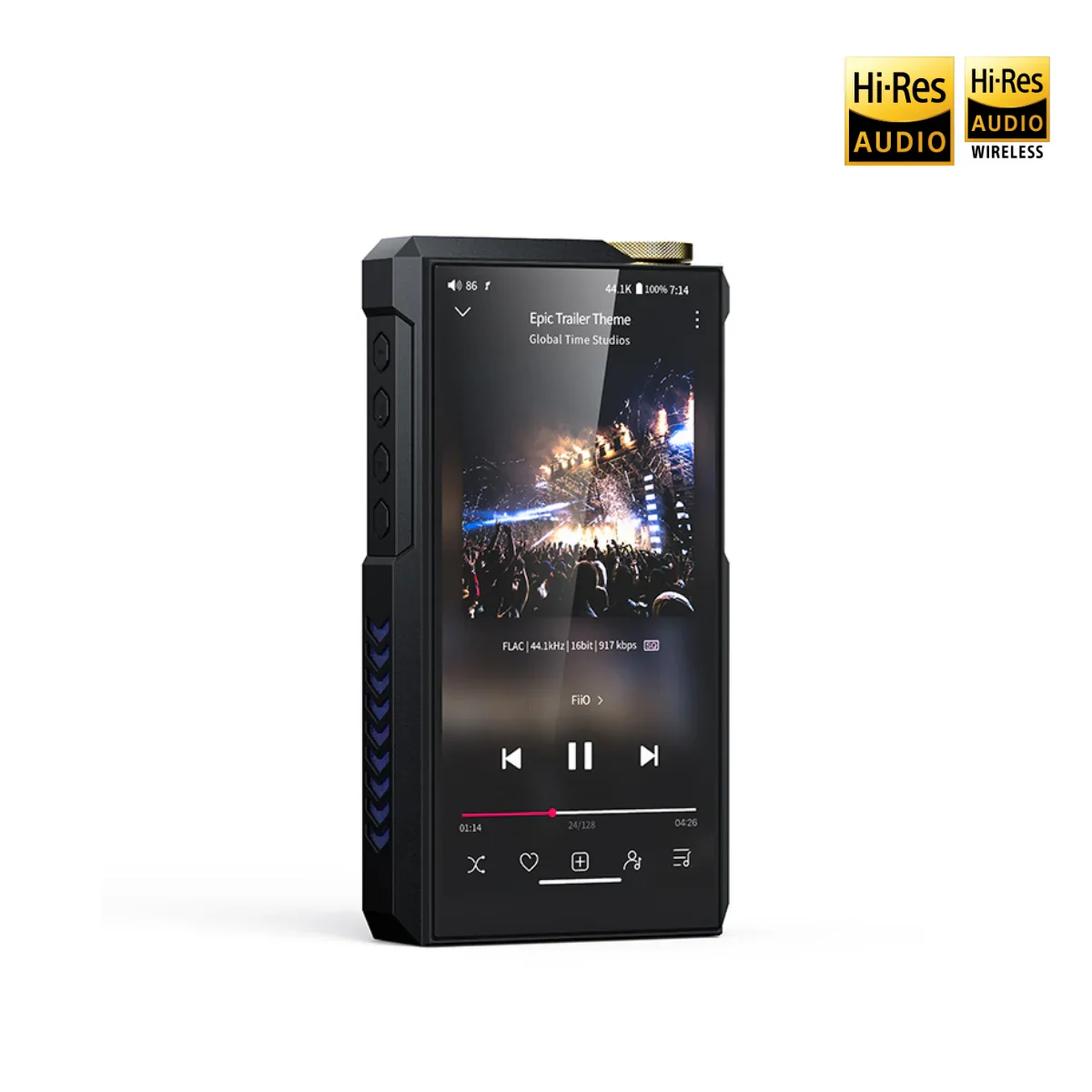

Fiio M27 Portable High Res Audio Player Aluminium Black

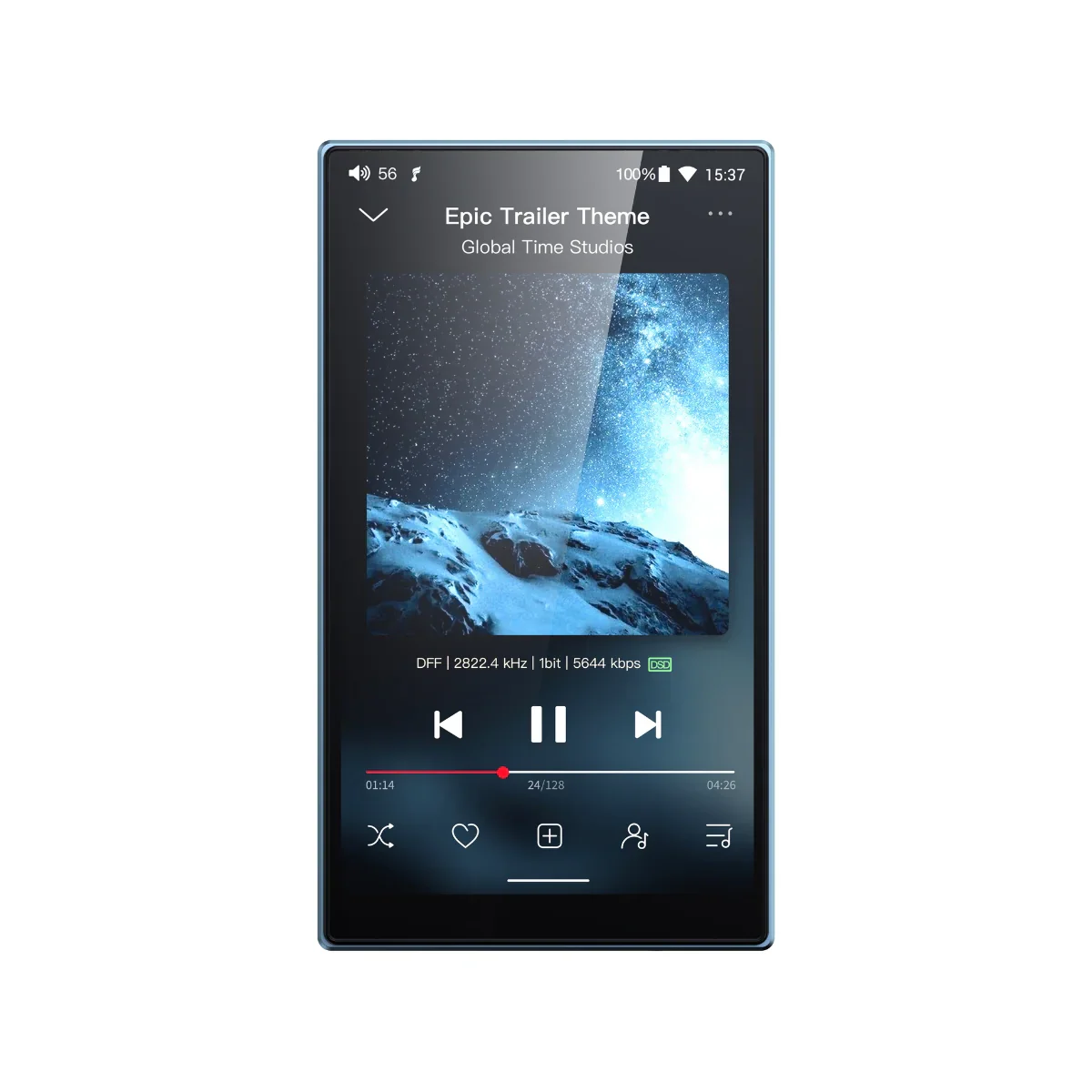

Fiio JM21 (4GB+64GB) Portable Hi-Res Audio Player

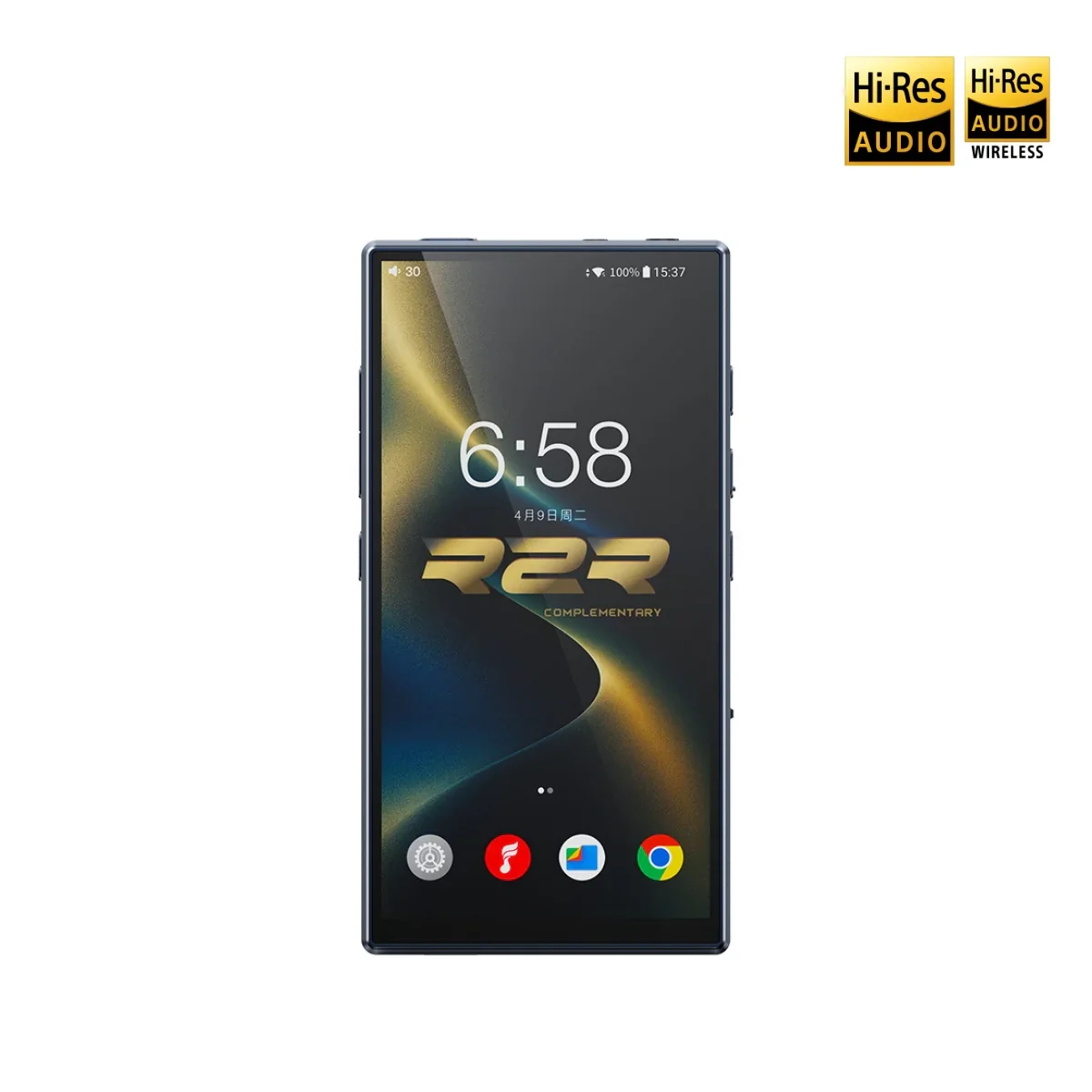

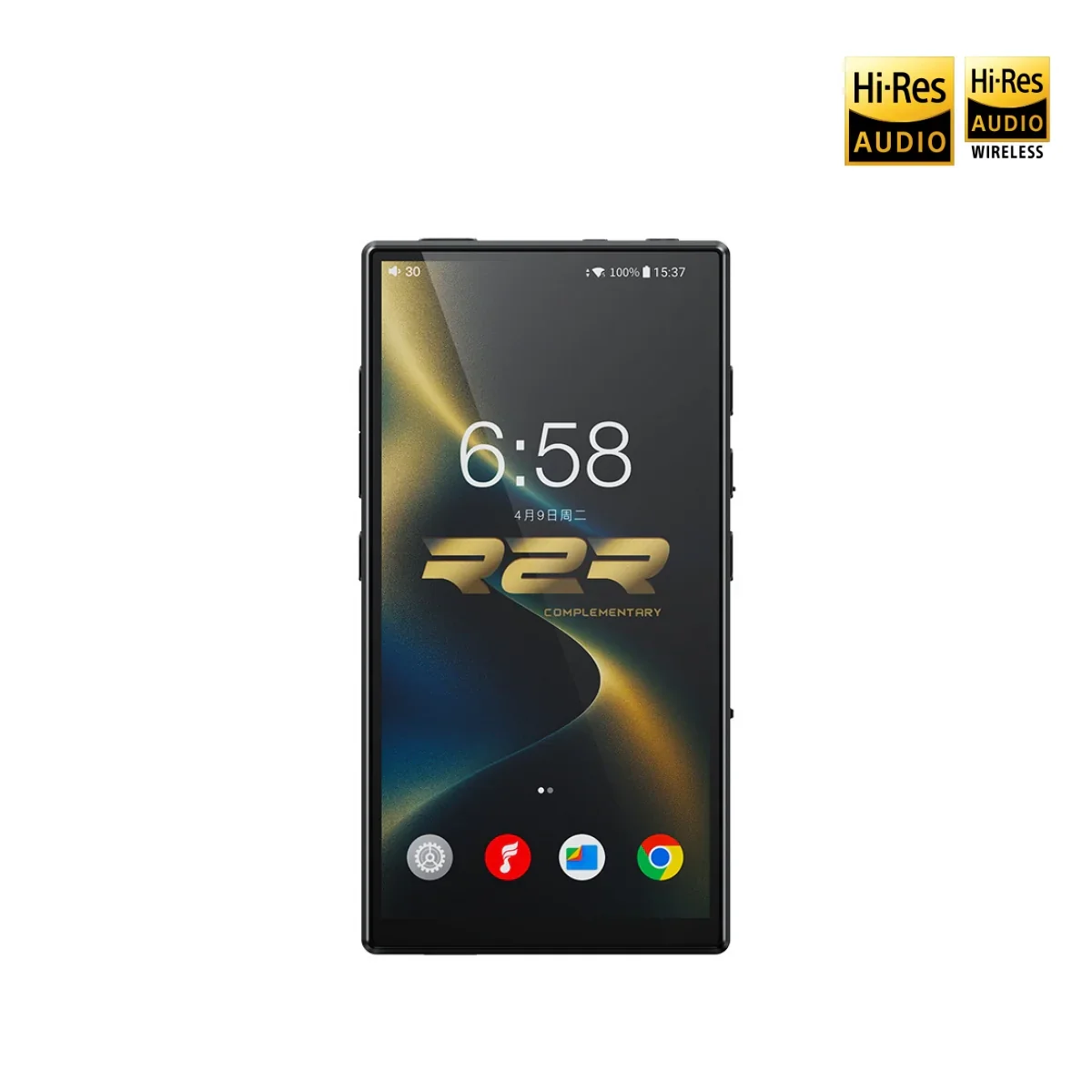

Fiio M33 R2R Portable Audio Player DAP

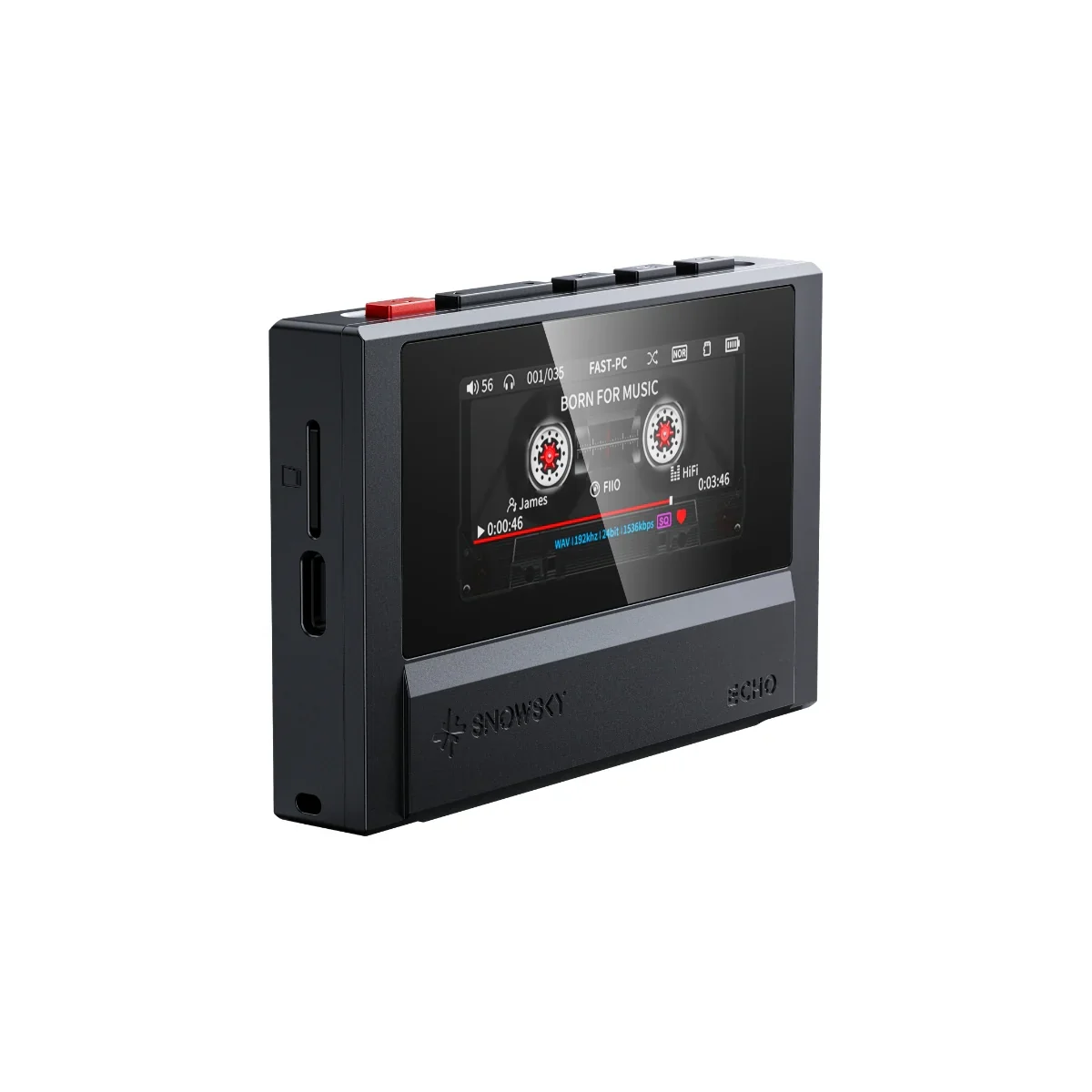

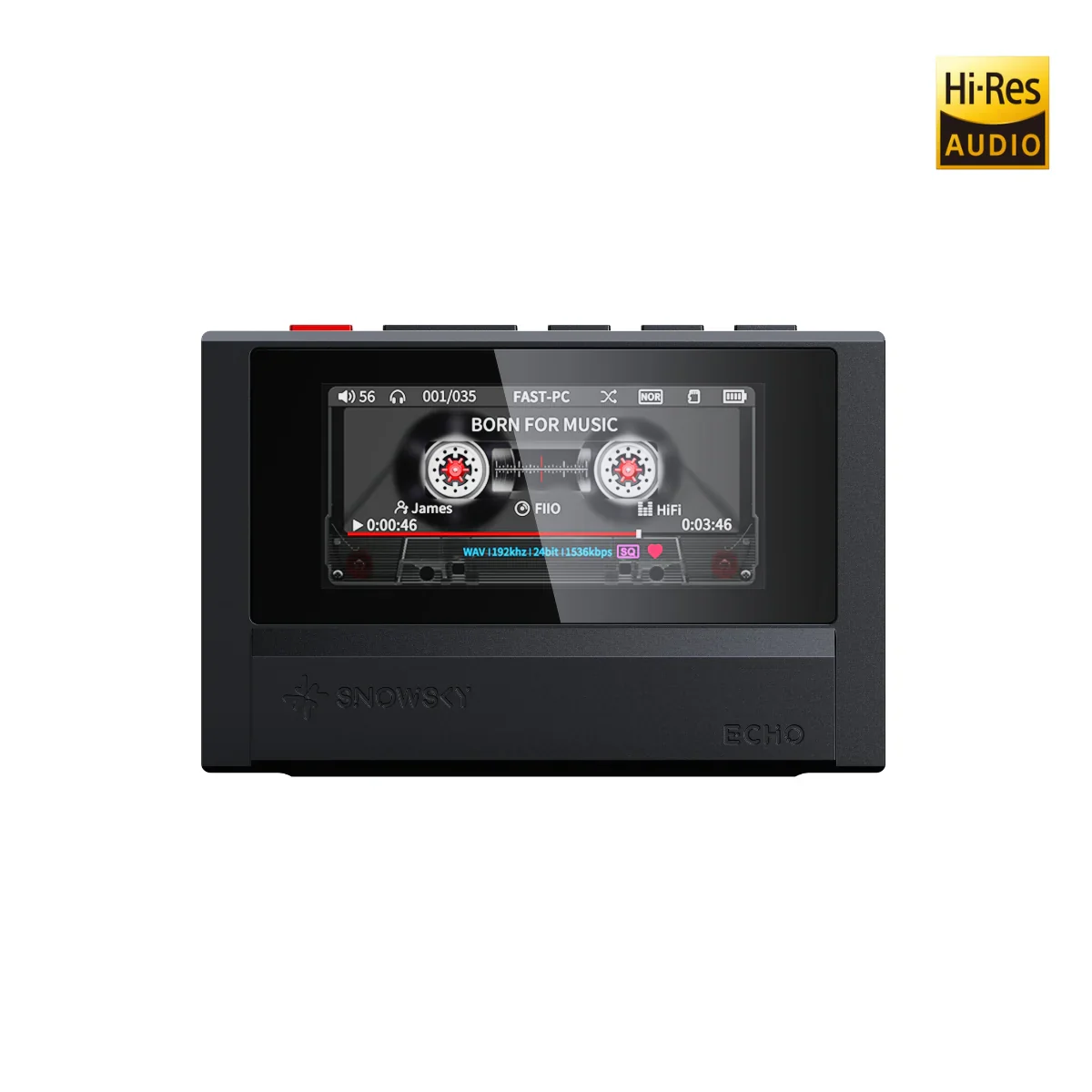

Fiio Snowsky ECHO Portable Audio Player

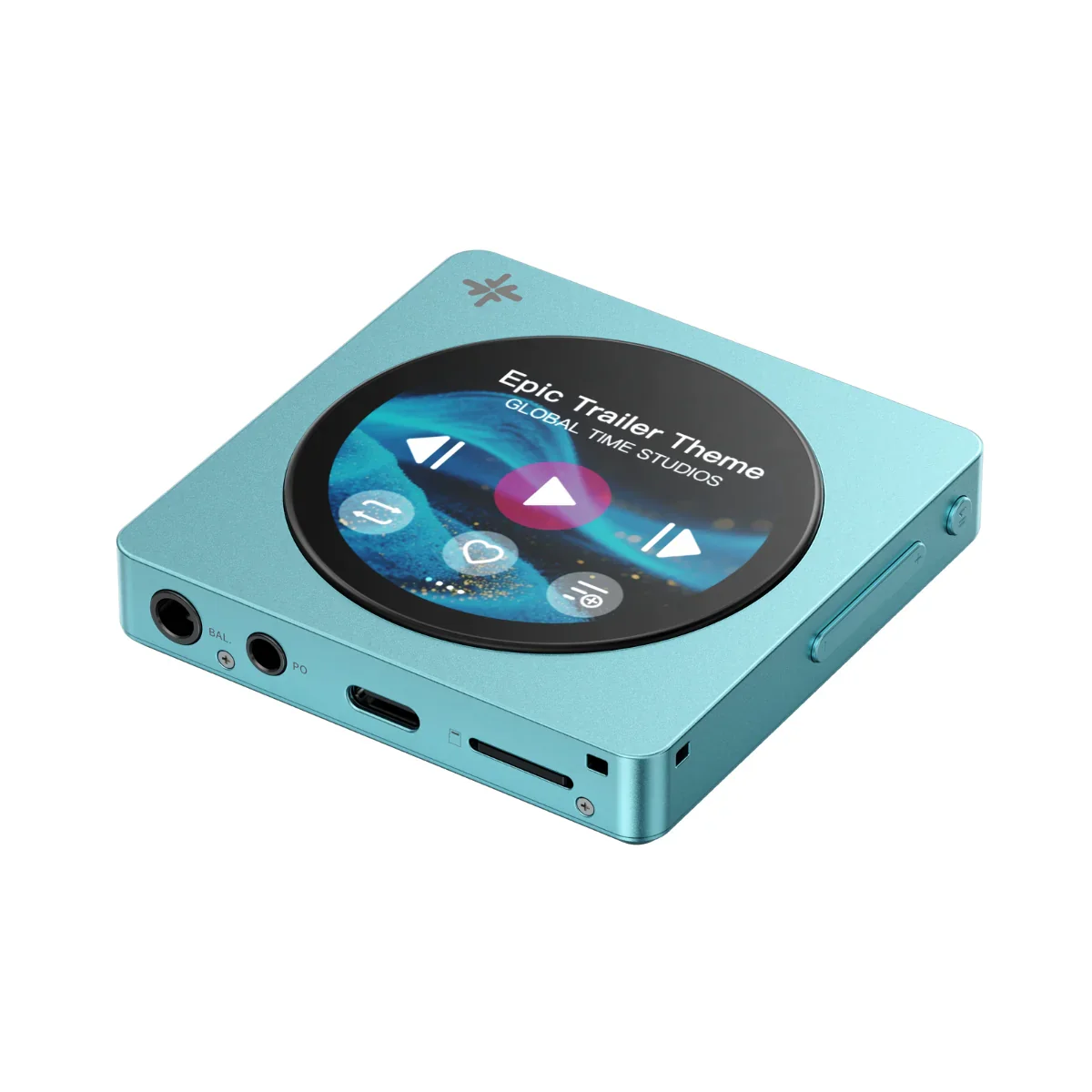

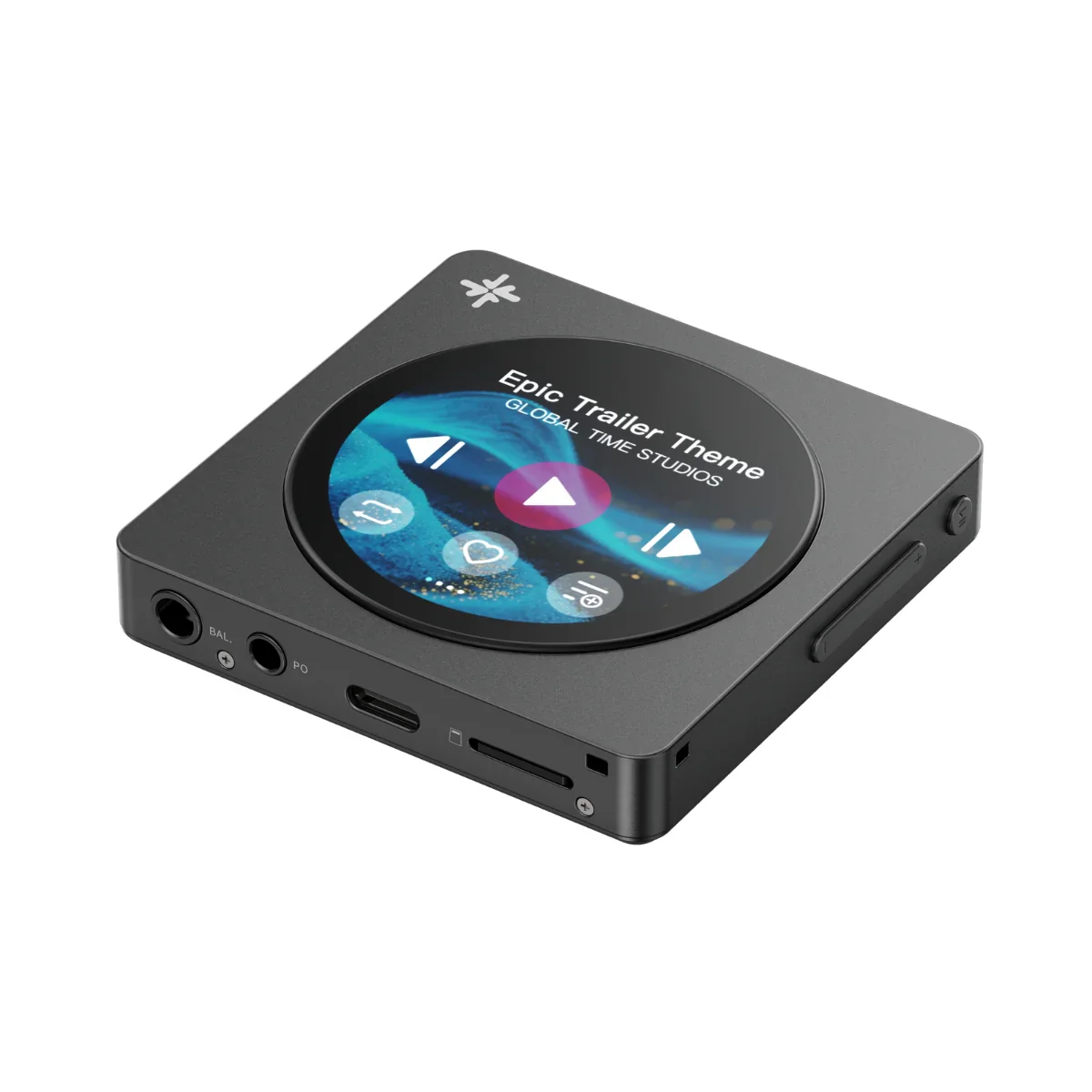

Fiio Snowsky Disc Portable high Res Audio Player
